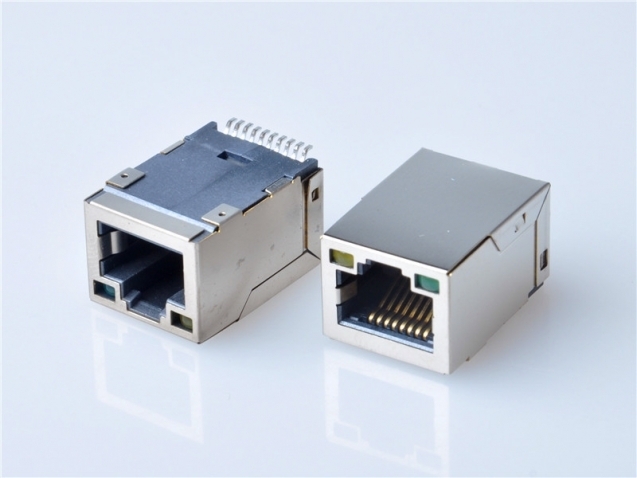

RJ45 Connector with Transformer,SMD,100Mbps

Model: HBJ-M4BA01ANL
Series: SMT RJ45 W/Transformer
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • Place of Origin

    Guangdong, China (Mainland)

    Number

    HBJ-M4BA01ANL

    Brand Name

    HULYN

    Type

    DIP/SIDE ENTRY

    Shield EMI Tabs:

    NO

    Speed:

    100BASE-TX

    Application

    PCB

    Gender

    Female

    Number of Ports:

    1x1

    LED

    YES

    Temperature:

     TO  70

    Latch:

    UP

    Description:

    100Base-TX (Fast Ethernet) surface mount RJ45 single port (1x1) Tab-UP/DOWN with or without LEDS Integrated Magnetics Connector, designed to support applications such as: Set Top Box and

    Network Interface Cars (NIC)

    Features and Benefits:

    RoHS peak wave reflow temperature rating 245°C

    SMT product, reduced size and low cost alternative

    Meets IEEE 802.3 specification

    High performance for maximum EMI suppression

    Minimum 1500Vrms isolation per IEEE 802.3 requirement
