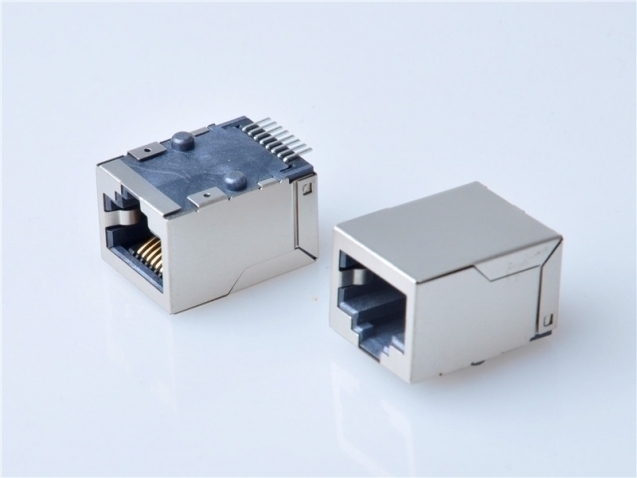

RJ45 Modular Jack/SMD
Model： HRSK1-1BF09-36BC-2R
Series： SMT RJ45 W/Transformer
Download PDF
- Specification
- Drawing sheet
-
-
10/100Base-T RJ45 single port (1x1) SMD integrated magnetics connector, designed to support
applications such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications.
Features and Benefits:
Compliant with IEEE 802.3 standard
350μH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
Low height and small footprint to minimize board space
RoHS peak wave solder temperature rating 260°C
-
10/100Base-T RJ45 single port (1x1) SMD integrated magnetics connector, designed to support
