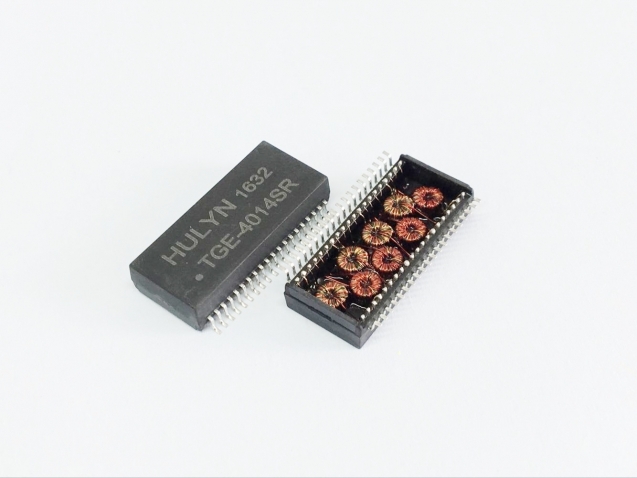

Quad Port, 10/1000BASE-T Ethernet Transformer Modules, SMD

產品型號: TGE-4014SR
產品系列: 网络磁性器件系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • Quad Port, 10/1000BASE-T Ethernet Transformer Modules, SMD,Rohs
    HULYN Part Number T80E-4014SR
    Pulse Part Number
    Speed 10/1000BASE-T
    Number of Ports QUAD
    Application - LAN ETHERNET (NON PoE)
    Package SMD
    Temperature 0 TO 70
    AutomDX YES
    Comment SAME AS NL VERSION
    Configuration RX T,C,S
    Configuration TX T,C,S
    Construction OPEN FRAME
    Cores Per Port 16
    Package Height (Inches) 0.230
    Package Height (mm) 5.84
    Package Length (Inches) 1.125
    Package Length (mm) 28.58
    Package Width (Inches) 0.660
    Package Width (mm) 16.76
    Turns Ratio RX 1CT:2CT
    Turns Ratio TX 1CT:2CT
