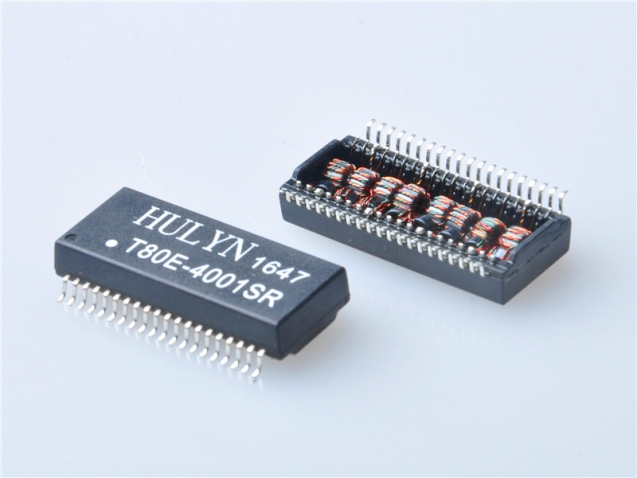

Quad Port, 10/100 BASE-T Ethernet Transformer Modules, SMD，Rohs
產品型號： T80E-4001SR
產品系列： 磁性元器件系列
PDF文檔下載
- 詳細介紹
- 圖紙說明
-
Quad Port, 10/100 BASE-T Ethernet Transformer Modules, SMD，Rohs HULYN Part Number T80E-4001SR Pulse Part Number H1234NL /HX1234NL /H40537MN Speed 10/100BASE-T Number of Ports QUAD Application - LAN ETHERNET (NON PoE) Package SMD Temperature - 40 TO + 85 AutomDX YES Comment SAME AS NL VERSION Configuration RX T,C,S Configuration TX T,C,S Construction OPEN FRAME Cores Per Port 16 Package Height (Inches) 0.225 Package Height (mm) 5.715 Package Length (Inches) 1.12 Package Length (mm) 28.45 Package Width (Inches) 0.660 Package Width (mm) 16.76 Turns Ratio RX 1CT:1CT Turns Ratio TX 1CT:1CT
