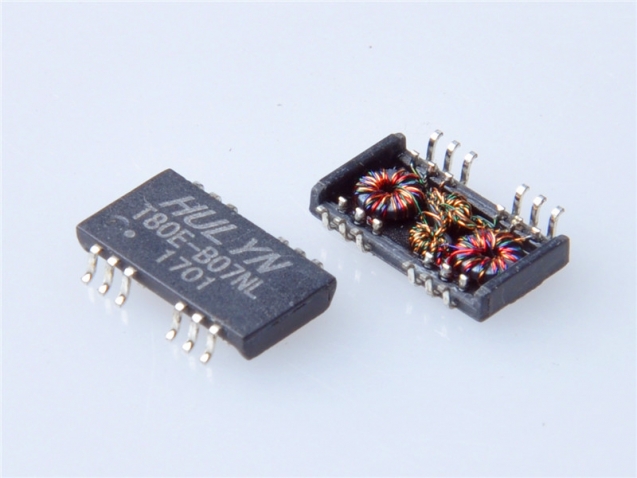

Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs

產品型號: T80E-B07NL
產品系列: 磁性元器件系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
    HULYN Part Number T80E-06NL
    Speed 10/100BASE-T
    Number of Ports SINGLE
    Application - LAN ETHERNET (NON PoE)
    Package SMD
    Temperature - 40 TO + 85
    AutomDX YES
    Comment SAME AS NL VERSION
    Configuration RX T,C,S
    Configuration TX T,C,S
    Construction OPEN FRAME
    Cores Per Port 4
    Package Height (Inches) 0.090
    Package Height (mm) 2.29
    Package Length (Inches) 0.50
    Package Length (mm) 12.70
    Package Width (Inches) 0.380
    Package Width (mm) 9.65
    Turns Ratio RX 1CT:1CT
    Turns Ratio TX 1CT:1CT
