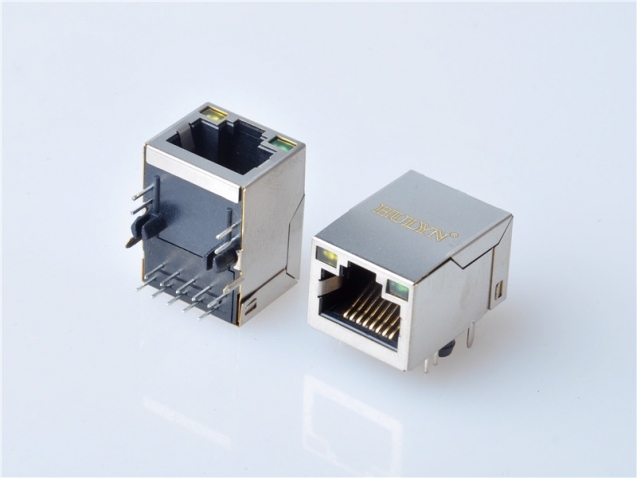

Shielded RJ45 Modular Jack Connector with Transformer

Model: HGJ-3BA01ANL
Series: Tab-UP RJ45 Series
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • Place of Origin

    Guangdong, China (Mainland)

    Number

    HGJ-3BA01ANL

    Brand Name

    HULYN

    Type

    DIP/SIDE ENTRY

    Shield EMI Tabs:

    NO

    Speed:

    1000BASE-TX

    Application

    PCB

    Gender

    Female

    Number of Ports:

    1x1

    LED

    YES

    Temperature:

     TO  70

    Latch:

    UP

    Description:

    10/100Base-TX RJ45 1x1 Tab-UP Integrated Magnetics Connector,

    designed to support high volume cost-conscious consumer applications such as:

    ADSL modems, Cable modems, STB and Video on Demand.

    Features and Benefits:

    RoHS peak wave solder temperature rating 260°C

    Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

    Meets IEEE 802.3 specification

    350μH minimum OCL with 8mA bias current

    High performance for MAX EMI suppression for cost-conscious applications
