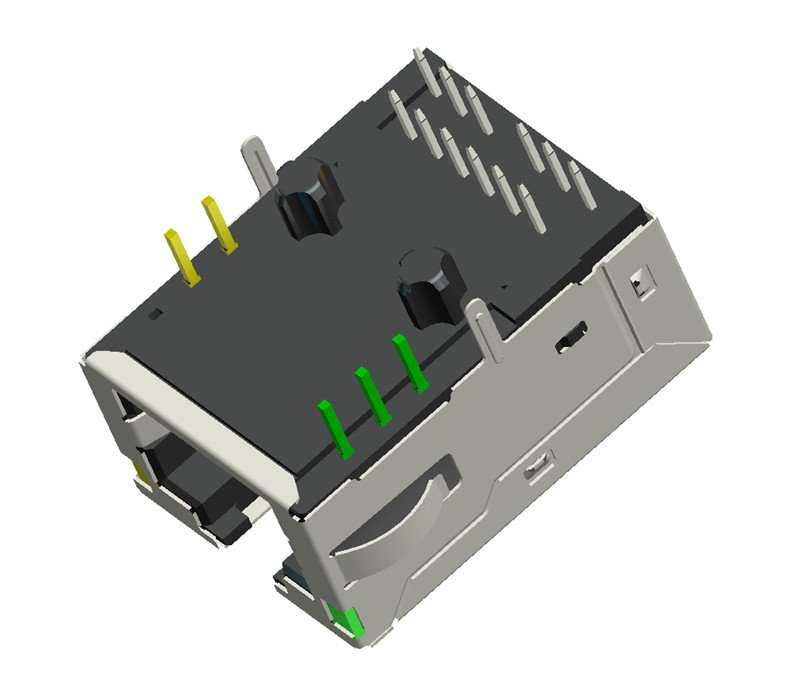

Low Profile RJ45 Magjack Connector Gigabit Magnetic Jack

Model: HRC3-1AK1G14-3M1BB-1R
Series: Tab-UP RJ45 Series
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • 100/1000Base-T RJ45 single port (1x1) Tab-UP integrated magnetics connector, designed to support

    applications such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications.

    Features and Benefits:

    Compliant with IEEE 802.3 standard
    350μH minimum OCL with 8mA bias current
    High performance for maximum EMI suppression
    Low height and small footprint to minimize board space
    RoHS peak wave solder temperature rating 260°C
