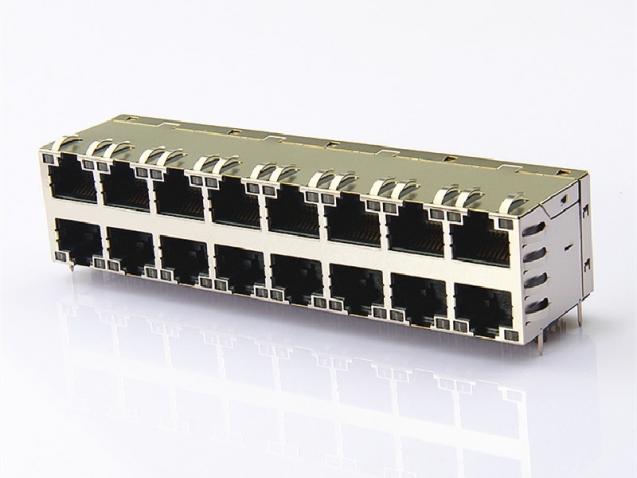

2X8 Stacked RJ45 Modular Jack With Transformer 1000BASE
Model： HGJ-2801NLF
Series： STACKED RJ45 WITH TRANSFORMER
Download PDF
- Specification
- Drawing sheet
-
Place of Origin：
Guangdong, China (Mainland)
Number：
HGJ-2801NLF
Brand Name：
HULYN
Type：
THT SOLDER
Shield EMI Tabs:
YES
Speed:
1000BASE-TX
Application：
PCB
Gender：
Female
Number of Ports:
2x8
LED：
NO
Temperature:
0 TO 70
Latch:
BOTHN
Description:
10/100/1000 Base-TX RJ45 2xN Integrated Magnetics Connector, designed tosupport such applications as: Switches, Routers, Servers and Hub.
Features and Benefits:
RoHS peak wave solder temperature rating 260°C
2xN RJ45 with internal magnetics
Suitable for CAT 3, 5, 6 UTP cable or better
Internal magnetics are 100% electrically tested for HI-POT
and functionality per IEEE802.3 requirement
Meets or exceeds IEEE 802.3ab standard for 1000Base-T
Electrical Performance Summary:
350 μH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
Meets or exceeds IEEE 802.3ab standard for 1000Base-T
