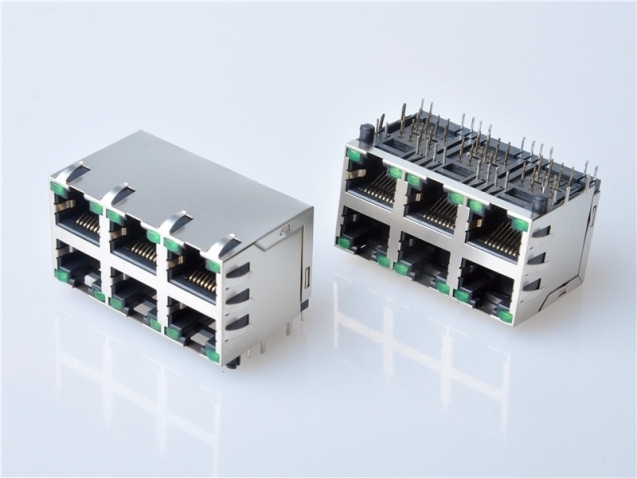

Stacked RJ45 Modular Jack 2x3 With LEDs

Model: HR5922SF-238801B-81-1R
Series: Stacked RJ45 Modular Jack
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • ELECTRICAL

    CURRENT RATING:1.5AMPS

    VOLTAGE RATING:125VAC

    INSULATION RESISTANCE:500MEGOHMS MINI

    WITHSTAND VOLTAGE:AC 1000V RMS 50Hz or60Hz 1MIN

    CONTACT RESISTANCE:30MILLOHMS MINI

    MECHANICAL

    INSERTIONFORCE:2CONTACTS..350g 4CONTACTS..500g 6CONTACTS..750g

    8CONTACTS..900g 10CONTACTS..1050g

    RETENTION STRENGTH:7.7KgBETWEEN JACK AND PLUG

    CRIMP TENSILE STRENGTH:2.27Kg

    DURABILITY:750MATING CYCLES MINI

    MATERIAL

    HOUSING:1)PA66(UL94V-0) 2)GLASS FILLED PBT(UL94V-0) 3 PA9T 94V-0

    CONTACT WIRE:1)0.45mmDIA PHOSPHOR BRONZE GOLD PLATING OVER NICKEL

    2)0.35mmTHICKNESS PHOSPHOR BRONZE ALLOY SELEOTIVE GOLD

    PLATING OVER NICKEL

    SHIELDING:0.25mmTHICKNESS COPPER ALLOY WITH TIN PLATED

    GOLD PLATINGG/F u inch 3u inch 6u inch 15u inch 30u inch, 50u inch.

    CONDITION:

    USING CONDITION -20 C~+55CRH 85% BELOW

    STORING CONDITION:0C~32C,RH 65% BELOW
