You are hear：Home > Products > Stacked RJ45 Modular Jack > Stacked RJ45 Modular Jack Connector, Side Entry, 2x8 Ports

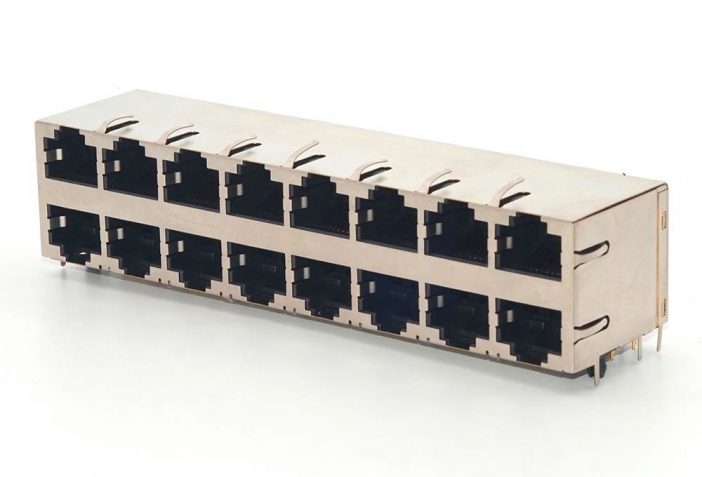

Stacked RJ45 Modular Jack Connector, Side Entry, 2x8 Ports

Model： HR5922SF-2888XXX-XX
Series： Stacked RJ45 Modular Jack
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • Electrical Characteristic:
    Insulation Resistance:
    500 MΩ Min.
    Contact Resistance:
    30 mΩ Max.
    Withstand Voltage:
    1000 VAC
    Current Rating:
    1.5 Amperes
    Material:
    Housing:
    Thermoplastic UL94V-0
    Contact:
    Fully Gold Plating
    Spring Wire:
    Φ 0.35 mm Gold Plated Phosphor Bronze Contacts with Nickel Underplate
    Shield:
    Nickel Plated Brass
