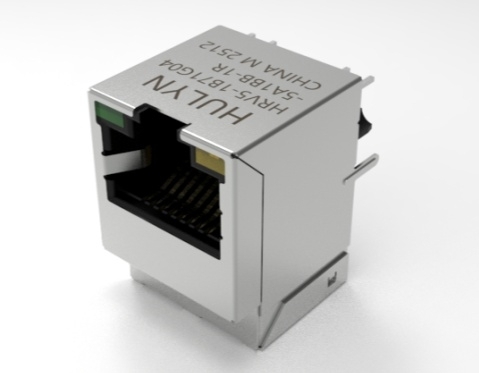

RJ45带变压器插座,180度带灯带台阶
產品型號： HRV5-1B71G04-5A1BB-1R
產品系列： RJ45帶變壓器180度系列
PDF文檔下載
- 詳細介紹
- 圖紙說明
-
-
100/1000Base-T RJ45 single port (1x1) Vertical integrated magnetics connecto, designed to support
applications such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications.
Features and Benefits:
Compliant with IEEE 802.3 standard
350μH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
Low height and small footprint to minimize board space
RoHS peak wave solder temperature rating 260°C
-
100/1000Base-T RJ45 single port (1x1) Vertical integrated magnetics connecto, designed to support
