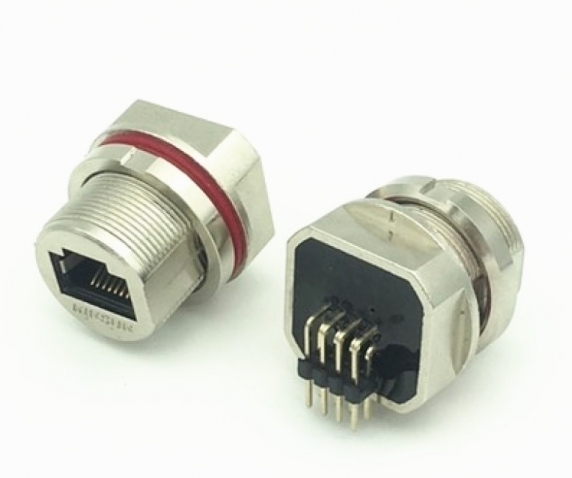

Waterproof Screw Lock, RJ45 Connectors 90 degrees, welded

產品型號: HRF-33056P05041-1R
產品系列: RJ45 防水連接器系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  •

    Features

    • RJ45 (USB) ethernet waterproof coupler
    • Waterproof thread Lock, Watertight connectors.
    • Cost-saving.
    • 90 degree panel mount
    • With security screw (Tamper proof screw)
    • IP69K waterproof connectors to cable assemblies.
    • Anti-oxidization and anti-UV.
    • Compliant with the RoHS Directive.
    • Customized orders are welcome.

    Specification

    • Housing Zinc Alloy, Nickel Plated.
    • Nut: Copper Alloy, Nickel Plated
    • Gasket: Silicone Color: Black
    • Contacts: Phosphor Bronze
    • Plating: Gold Plating Over Nickel In Contact
    • Nut Installation Torque Ranfe is: 16 ~ 18kg-cm
