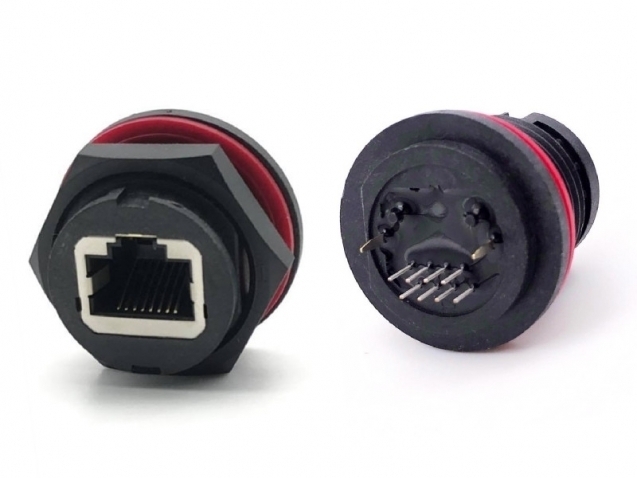

Waterproof Connector DIP Cat. 5e RJ45 Jack for IP68

產品型號: HRF-330151DA05-1R
產品系列: 防水RJ45連接器系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  •



    Waterproof Connector Cat. 5e RJ45 Jack for IP68

    Features

    • Cat. 5e RJ45 Jack.
    • Cost-saving.
    • IP69K waterproof connectors to cable assemblies.
    • Anti-oxidization and anti-UV.
    • Compliant with the RoHS Directive.
    • Customized orders are welcome.

    Specification

    • IP Grade: IP69K
    • Plastic Housing: High Temp. Thermoplastic. Flammability Rating UL 94V-0.
    • Contacts: Phosphor Bronze
    • Plating: Gold Plating Over Nickel in Contact. Tin Plating Over Nickel in Solder Area
    • Shield: Brass with Nickel Plated
    • Nut: Engineering Thermoplastic Flammability Rating UL 94V-0
    • Gasket: Silicone
    • Panel Thick: 2.0 ~ 4.0mm
