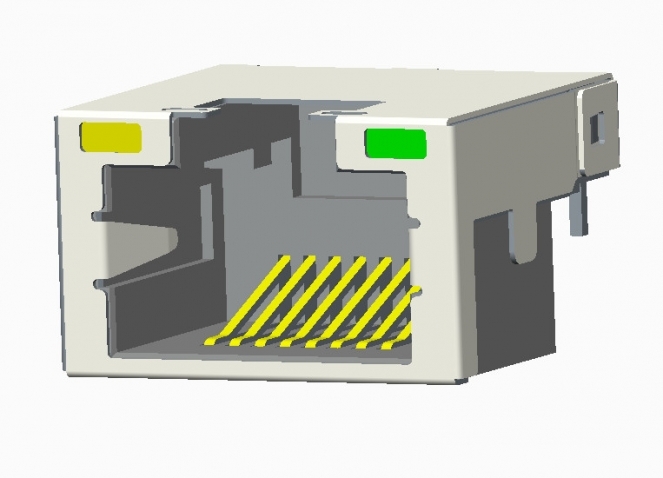

Shielded RJ45 Modular Jack, Through Hole Type, Offset, LED
Model: HR6013S-1188N15B-21-2R
Series: RJ45 (Offset) Jack
Download PDF
- Specification
- Drawing sheet
-
Electrical Characteristic:
Insulation Resistance: 500 MΩ Min.
Contact Resistance: 50 mΩ Max.
Withstand Voltage: 1000 VAC
Current Rating: 1.0 Amperes
Material:
Housing: Thermoplastic UL94V-0
Contact: Selective Gold Plating
Terminal:0.30 mm Thick Gold Plated Contacts with Tin Plated Solder Area
Shield: Nickel Plated
