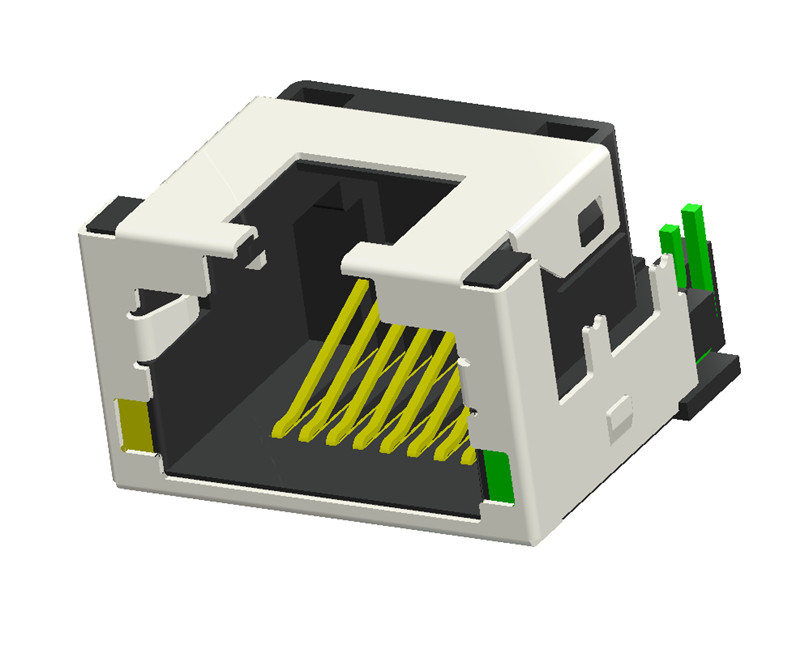

Low Profile Shielded RJ45 Modular Jack, Through Hole Type,H=9.8mm
Model： HR6074S-1188N15B-71-2R
Series： RJ45 (Offset) Jack
Download PDF
- Specification
- Drawing sheet
-
Electrical Characteristic:Insulation Resistance:500 MΩ Min.Contact Resistance:50 mΩ Max.Withstand Voltage:1000 VACCurrent Rating:1.5 AmperesMaterial:Housing:Thermoplastic UL94V-0Contact:Selective Gold PlatingTerminal:0.30 mm Thick Gold Plated Contacts with Tin Plated Solder AreaShield:Nickel Plated SUS
