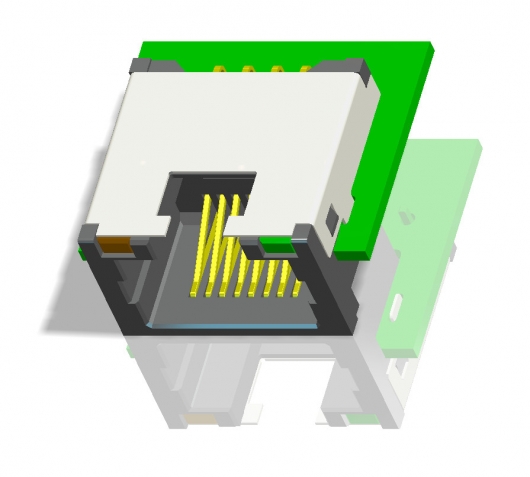

very low profile type RJ45 for notebook used/ H=9.9mm
Model： HR6072S-1188N35B-21-2R
Series： RJ45 (Offset) Jack
Download PDF
- Specification
- Drawing sheet
-
Electrical Characteristic:Insulation Resistance:500 MΩ Min.Contact Resistance:50 mΩ Max.Withstand Voltage:1000 VACCurrent Rating:1.0 AmperesMaterial:Housing:Thermoplastic UL94V-0Contact:Selective Gold PlatingTerminal:0.25 mm Thick Gold Plated Contacts with Tin Plated Solder AreaShield:Nickel Plated SUS
