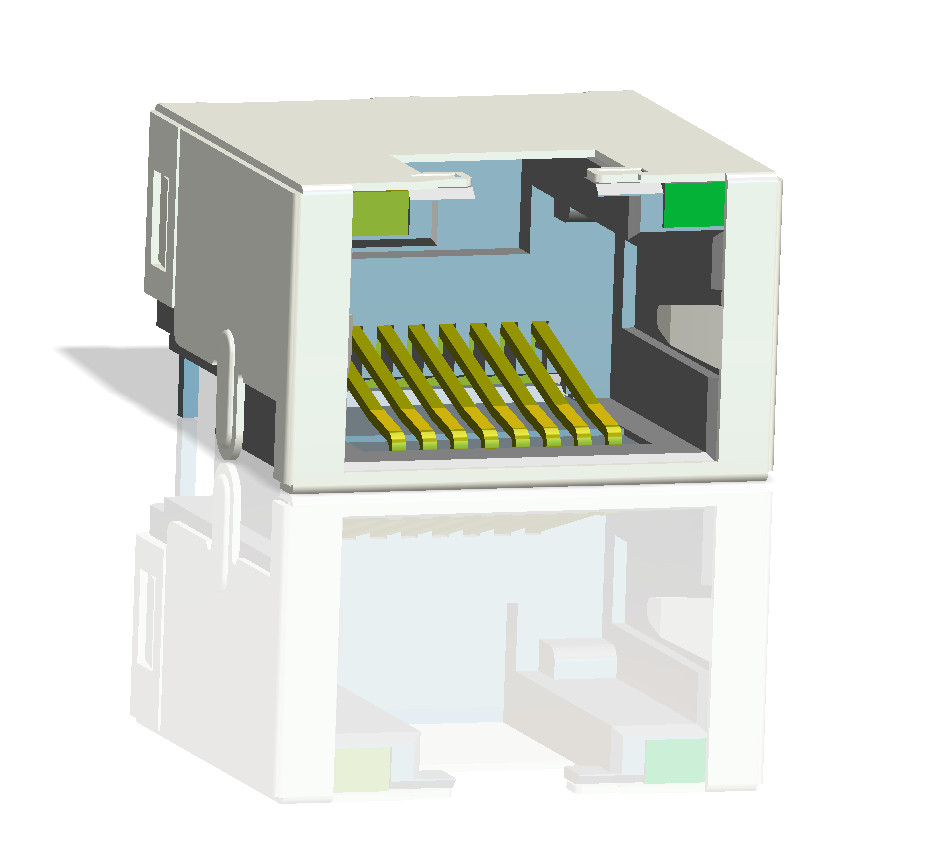

Low Profile RJ45 for notebook used/ H=9.85mm

Model: HR6021SK-1188N34B-21-1R
Series: RJ45 (Offset) Jack
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • Electrical Characteristic:
    Insulation Resistance:
    500 MΩ Min.
    Contact Resistance:
    50 mΩ Max.
    Withstand Voltage:
    1000 VAC
    Current Rating:
    1.0 Amperes
    Material:
    Housing:
    Thermoplastic UL94V-0
    Contact:
    Selective Gold Plating
    Terminal:
    0.25 mm Thick Gold Plated Contacts with Tin Plated Solder Area
    Shield:
    Nickel Plated SUS
  •
