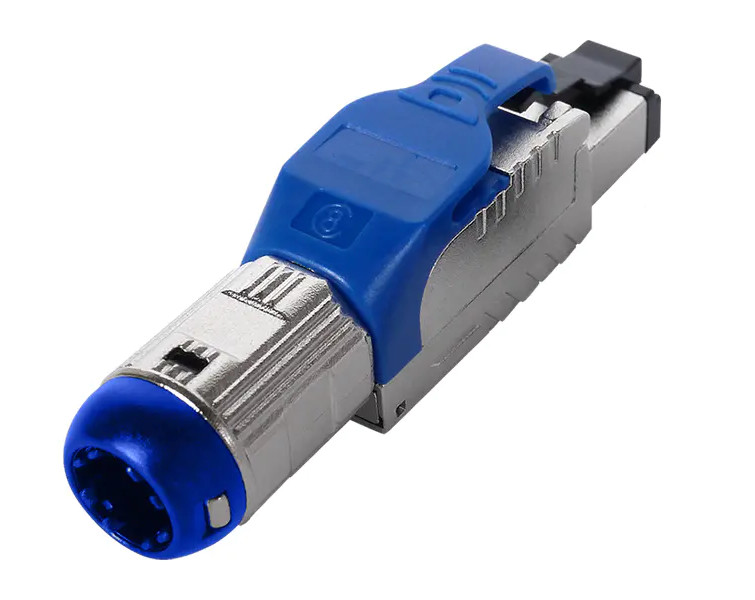

Cat.8 Field Termination Plug
Model： HR508S-C88XXX1L-3R
Series： RJ45 Plug/Adapter Series
Download PDF
- Specification
- Drawing sheet
-
● Comply with ANSI/TIA-568.2-D & ISO/IEC 11801-1, Ed. 1.0
● Follow IEC 60603-7 series for RJ45 8-Way Connector
● Support 40G BASE-T
● Cable Wire Gauge: 22 ~ 26AWG
● Cable Outer Diameter:6.0 ~ 8.5mm
● 50U" Gold Plating
● Mating Cycles: Up to 1200 Times
● Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications
● GHMT / UL / POE+ / CE Certified & Comply with RoHS & REACH
Certified by GHMT.
