RJ45 Modular Jack Connector, Top Entry
Model： HR5225-1188XXX-1R
Series： Single Port RJ11/RJ45 PCB Jack
Download PDF
- Specification

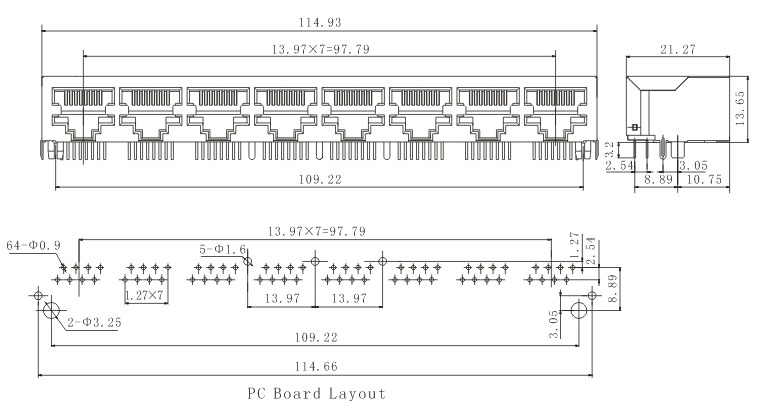

- Drawing sheet
-
Electrical Characteristic:Insulation Resistance:500 MΩ Min.Contact Resistance:50 mΩ Max.Withstand Voltage:1000 VACCurrent Rating:1.5 AmperesMaterial:Housing:Thermoplastic UL94V-0Contact:Selective Gold PlatingTerminal:0.35 mm Thick Gold Plated Contacts with Tin Plated Solder AreaShield:Nickel Plated Brass
-
