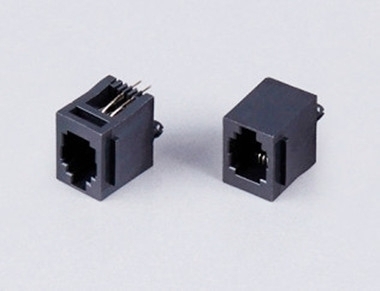

RJ11-4P4C Modular Jack Series RJ11 Connector
Model： HR5221B-1144XXX-1R
Series： Single Port RJ11/RJ45 PCB Jack
Download PDF
- Specification
- Drawing sheet
-
ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
INSULATION RESISTANCE:1000MEGOHMS MINI
WITHSTAND VOLTAGE:AC 1000V RMS 50Hz or60Hz 1MIN
CONTACT RESISTANCE:30MILLOHMS MINI
MECHANICAL
INSERTIONFORCE:2CONTACTS..350g 4CONTACTS..500g 6CONTACTS..750g
8CONTACTS..900g 10CONTACTS..1050g
RETENTION STRENGTH:7.7Kg BETWEEN JACK AND PLUG
CRIMP TENSILE STRENGTH:2.27Kg
DURABILITY:750MATING CYCLES MINI
MATERIAL
HOUSING:1)PA66(UL94V-0) 2)GLASS FILLED PBT(UL94V-0) 3 ）PA9T （94V-0）
CONTACT WIRE:1)0.45mm DIA PHOSPHOR BRONZE GOLD PLATING OVER NICKEL
2)0.35mm THICKNESS PHOSPHOR BRONZE ALLOY SELEOTIVE GOLD
PLATING OVER NICKEL
SHIELDING:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING：G/F u inch 3u inch 6u inch 15u inch 30u inch, 50u inch.
CONDITION:
USING CONDITION： -20 C~+55C RH 85% BELOW
STORING CONDITION: 0C ~32C ,RH 65% BELOW
Jason ZHU
