RJ45 connector pin definition
Release time：2014-03-03 Reading：0

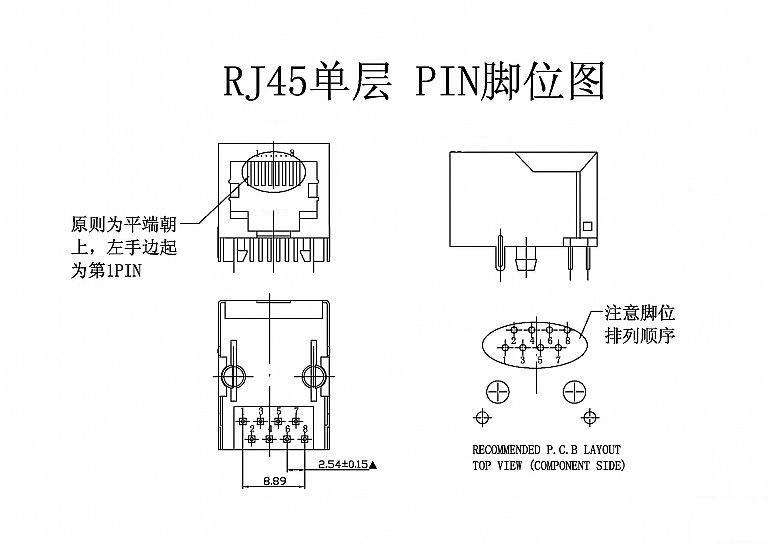

Single RJ45PIN pin bitmap is flat on top, left for the first PIN, pay attention to pin order.
Double RJ45 horizontal PIN pin bitmap principles for flat side up, the left hand side for the first PIN, pay attention to pin
Double RJ45 horizontal PIN pin bitmap principles for flat side up, the left hand side for the first PIN, pay attention to pin
