防水RJ45连接器,8PIN,带线,(螺牙式)

產品型號: HRF-3352E02120-1R
產品系列: 防水RJ45連接器系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • Features

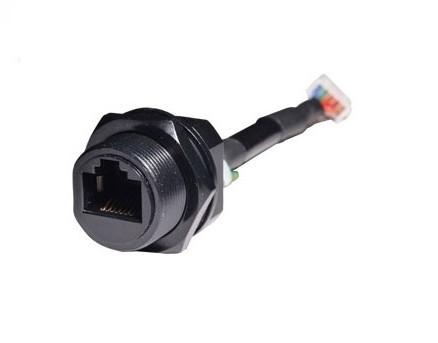

    • Waterproof RJ45 Jack with Cable and Wafer.
    • Cost-saving.
    • IP69K waterproof connectors to cable assemblies.
    • Anti-oxidization and anti-UV.
    • Compliant with the RoHS Directive.
    • Customized orders are welcome.

    Specification

    • IP Grade: IP69K
    • Plastic Housing: Engineering Thermoplastic Flammability Rating: UL 94V-0
    • Contacts: Phosphor Bronze.
    • Plating: Gold Plating Over Nickel in Contact.
    • Nut: Engineering Thermoplastic Flammability Rating UL 94V-0
    • Gasket: Silicone
    • Panel Thick: 1.5 ~ 4.5mm
    • RJ45 Plug Housing: PC
    • RJ45 Plug Contacts: Phospher Bronze, finish: Gold over Nickel
    • Cable: Cat 5e
