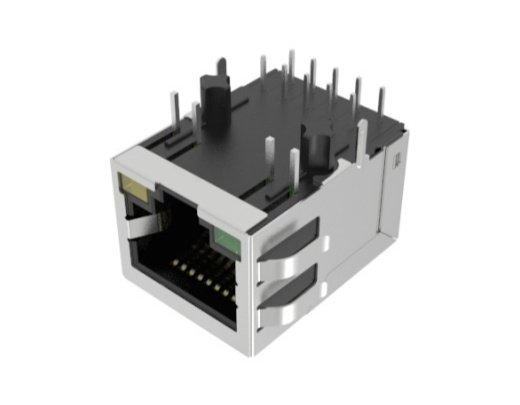

RJ45 JACK With PoE ,With bridge rectifier
Model： HRK1-1B21PF19-36A1BB-1R
Series： RJ45 With PoE Series
Download PDF
- Specification
- Drawing sheet
-
Place of Origin：
Guangdong, China (Mainland)
Number：
HRK1-1B21PF19-36A1BB-1R
Brand Name：
HULYN
Type：
DIP/SIDE ENTRY
Shield EMI Tabs:
NO
Speed:
100BASE-TX
Application：
PCB
Gender：
Female
Number of Ports:
1x1
LED：
Y/G
Temperature:
0 TO 70
Latch:
DOWN
Description:
10/100/1000 Base-TX RJ45 single port with integrated magnetics – Designed for most leading PHY
manufacturers with the addition of Power over Ethernet, according to IEEE 802.3af
Features and Benefits:
RoHS peak wave solder temperature rating 260°C
Single port Connector for PoE applications
Electrical Performance Summary:
350μH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
15W, 350mA, 48V PoE rating
