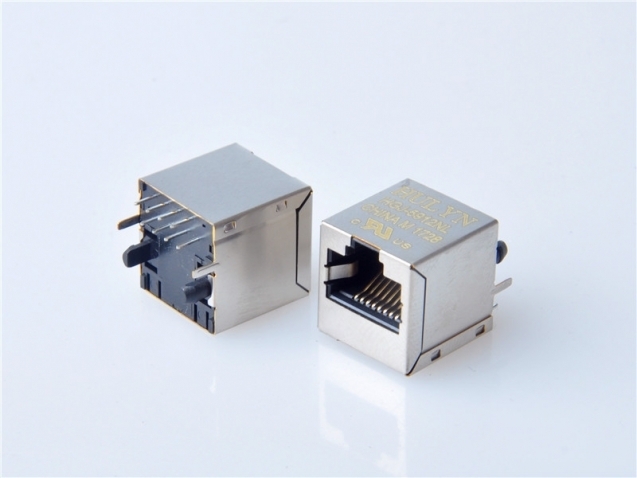

Vertical rj45 Jack with transformer

Model: HRV3-1BF09-3B1BD-1R
Series: Vertical RJ45 With Transformer
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • Place of Origin

    Guangdong, China (Mainland)

    Number

    HRV3-1BF09-3B1BD-1R


    Brand Name

    HULYN

    Type

    DIP/SIDE ENTRY

    Shield EMI Tabs:

    NO

    Speed:

    100BASE-TX

    Application

    PCB

    Gender

    Female

    Number of Ports:

    1x1

    LED

    NO

    Temperature:

     TO  70

    Latch:

    DOWN

    Description:

    10/100/1000Base-TX RJ45 1x1 Tab-DOWN 8-pin Integrated Magnetics Connector,

    designed to support high volume cost-conscious consumer applications such as:

    ADSL modems, Cable modems, STB and Video on Demand.

    Features and Benefits:

    RoHS peak wave solder temperature rating 260°C

    Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

    Meets IEEE 802.3 specification

    350μH minimum OCL with 8mA bias current

    High performance for MAX EMI suppression for cost-conscious applications
