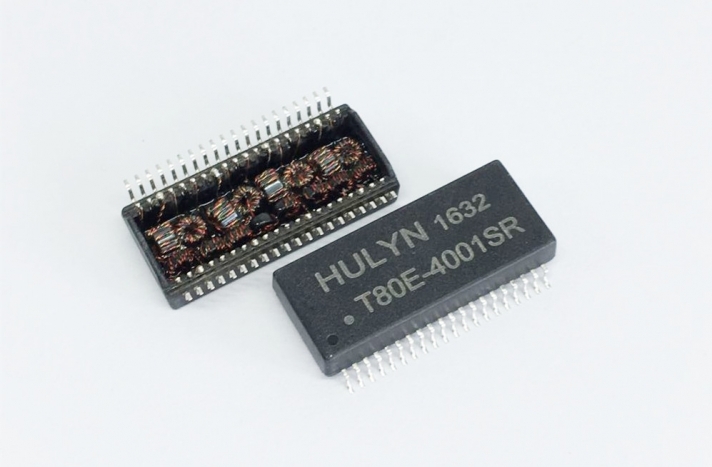

Quad Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs

Model: T80E-4001SR
Series: LAN Transformer Series
Download PDF

Online Consultation

  • Specification
  • Drawing sheet
  • Quad Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
    HULYN Part Number T80E-4001SR
    Pulse Part Number H1060NL
    Speed 10/100BASE-T
    Number of Ports QUAD
    Application - LAN ETHERNET (NON PoE)
    Package SMD
    Temperature 0 TO 70
    AutomDX YES
    Comment SAME AS NL VERSION
    Configuration RX T,C,S
    Configuration TX T,C,S
    Construction OPEN FRAME
    Cores Per Port 16
    Package Height (Inches) 0.230
    Package Height (mm) 5.84
    Package Length (Inches) 1.125
    Package Length (mm) 28.58
    Package Width (Inches) 0.660
    Package Width (mm) 16.76
    Turns Ratio RX 1CT:1CT
    Turns Ratio TX 1CT:1CT
