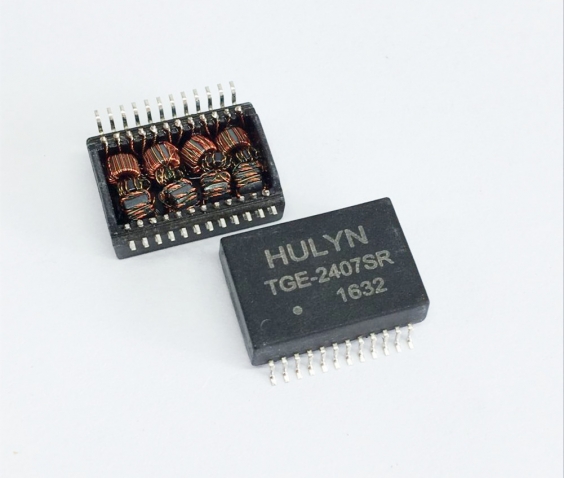

Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD，Rohs
Model： TGE-2407SR
Series： LAN Transformer Series
Download PDF
- Specification
- Drawing sheet
-
Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD，Rohs HULYN Part Number TGE-2407SR Speed 1000BASE-T Number of Ports SINGLE Application - LAN ETHERNET (NON PoE) Package SMD Temperature 0 TO 70 AutomDX YES Comment SAME AS NL VERSION Configuration RX T,C,S Configuration TX T,C,S Construction OPEN FRAME Cores Per Port 12 Package Height (Inches) 0.225 Package Height (mm) 5.72 Package Length (Inches) 0.740 Package Length (mm) 18.80 Package Width (Inches) 0.537 Package Width (mm) 13.64 Turns Ratio RX 1CT:1CT Turns Ratio TX 1CT:1CT
