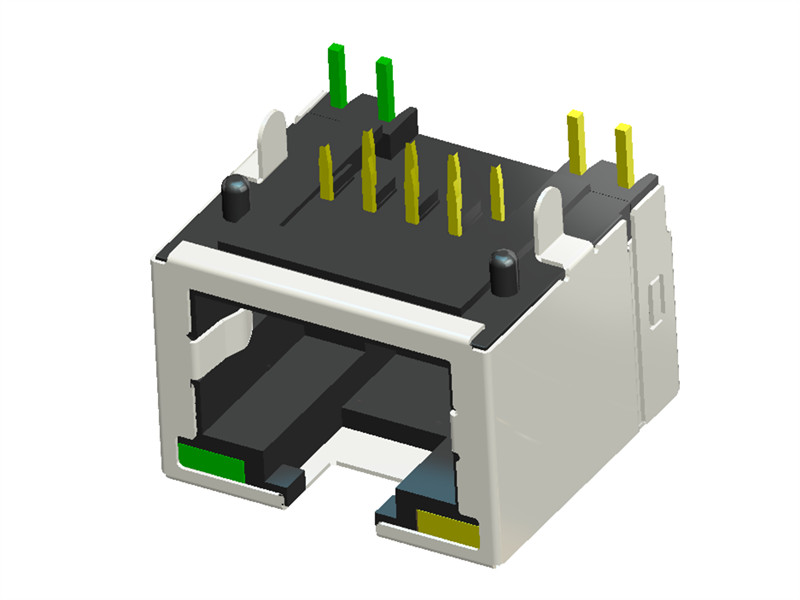

Ultra-thin RJ45 connector, With LEDs, height 11.50mm
Model： HR563BS-1188NXXB-21-1R
Series： Single Port RJ11/RJ45 PCB Jack
Download PDF
- Specification
- Drawing sheet
-
Electrical Characteristic:Insulation Resistance:500 MΩ Min.Contact Resistance:30 mΩ Max.Withstand Voltage:1000 VACCurrent Rating:1.5 AmperesMaterial:Housing:Thermoplastic UL94V-0Contact:Fully Gold PlatingSpring Wire:Φ 0.35 mm Gold Plated Phosphor Bronze Contacts with Nickel Underplate
