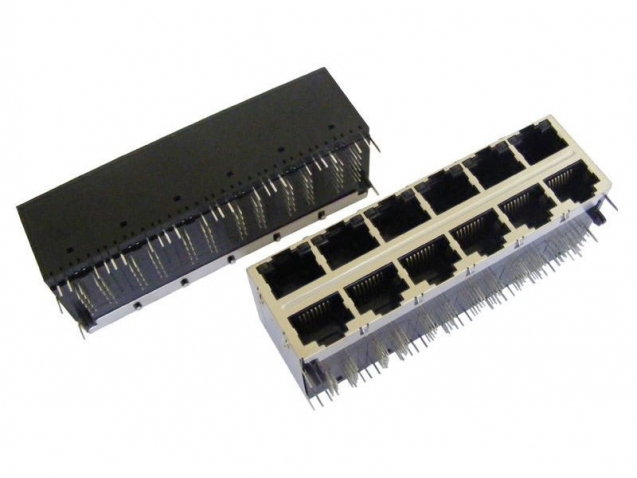

2X6 Stacked RJ45 Jack With transformer and light Pipe 1000Base

Model: HRN26B-1AV1G50-3W1BA-1R
Series: STACKED RJ45 WITH TRANSFORMER
Download PDF

Online Consultation

  • Specification
  • Drawing sheet

  • Place of Origin

    Guangdong, China (Mainland)

    Number

    HRN26B-1AV1G50-3W1BA-1R

    Brand Name

    HULYN

    Type

    THT SOLDER

    Shield EMI Tabs:

    YES

    Speed:

    1000BASE-TX

    Application

    PCB

    Gender

    Female

    Number of Ports:

    2x6

    LED

    G/Y

    Temperature:

    0  TO  70

    Latch:

    BOTHN



    Description:

     10/100/1000 Base-TX RJ45 2xN Integrated Magnetics Connector, designed tosupport such applications as: Switches, Routers, Servers and Hub.

    Features and Benefits:

    RoHS peak wave solder temperature rating 260°C

    2xN RJ45 with internal magnetics

    Suitable for CAT 3, 5, 6 UTP cable or better

    Internal magnetics are 100% electrically tested for HI-POT

    and functionality per IEEE802.3 requirement

    Meets or exceeds IEEE 802.3ab standard for 1000Base-T

    Electrical Performance Summary:

    350 μH minimum OCL with 8mA bias current

    High performance for maximum EMI suppression

    Meets or exceeds IEEE 802.3ab standard for 1000Base-T
