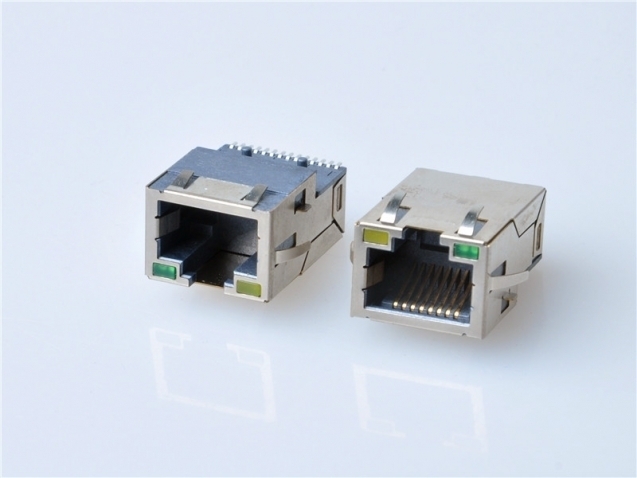

RJ45带变压器插座,千兆带灯沉板插座
產品型號： HGJ-M1Z20ANLF
產品系列： RJ45帶變壓器 SMD系列
PDF文檔下載
- 詳細介紹
- 圖紙說明
-
Place of Origin：
Guangdong, China (Mainland)
Number：
HGJ-M1Z20ANLF
Brand Name：
HULYN
Type：
SMD
Shield EMI Tabs:
YES
Speed:
1000BASE-TX
Application：
PCB
Gender：
Female
Number of Ports:
1x1
LED：
G/Y
Temperature:
0 TO 70
Latch:
UP
Description:
10/1000Base-TX RJ45 1x1 Tab-UP Integrated Magnetics Connector,
designed to support high volume cost-conscious consumer applications such as:
ADSL modems, Cable modems, STB and Video on Demand.
Features and Benefits:
RoHS peak wave solder temperature rating 260°C
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
Meets IEEE 802.3 specification
350μH minimum OCL with 8mA bias current
High performance for MAX EMI suppression for cost-conscious applications
