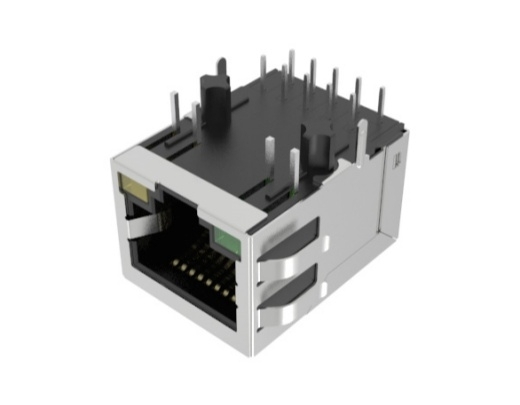

RJ45带灯变压器插座,百兆带POE,带整流桥

產品型號: HRK1-1B21PF19-36A1BB-1R
產品系列: RJ45 Jack 带PoE系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • Place of Origin

    Guangdong, China (Mainland)

    Number

    HRK1-1B21PF19-36A1BB-1R

    Brand Name

    HULYN

    Type

    DIP/SIDE ENTRY

    Shield EMI Tabs:

    NO

    Speed:

    100BASE-TX

    Application

    PCB

    Gender

    Female

    Number of Ports:

    1x1

    LED

    Y/G


    Temperature:

     TO  70

    Latch:

    DOWN



    Description:

    10/100/1000 Base-TX RJ45 single port with integrated magnetics – Designed for most leading PHY

    manufacturers with the addition of Power over Ethernet, according to IEEE 802.3af

    Features and Benefits:

    RoHS peak wave solder temperature rating 260°C

    Single port Connector for PoE applications

    Electrical Performance Summary:

    350μH minimum OCL with 8mA bias current

    High performance for maximum EMI suppression

    15W, 350mA, 48V PoE rating
