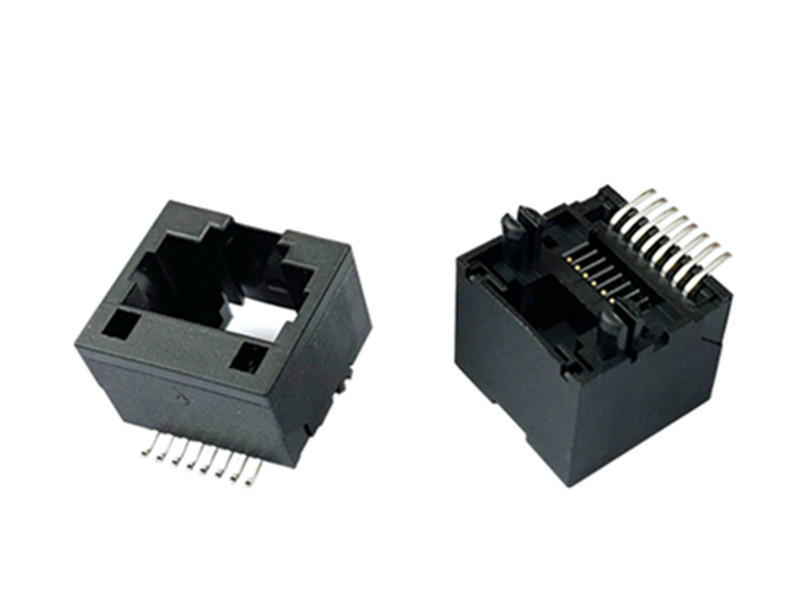

立式RJ45连接器,贴片8P8C,180度直插
產品型號: HR6213-1188XXX-2R
產品系列: RJ11/RJ45沉板式系列
PDF文檔下載
- 詳細介紹
- 圖紙說明
-
Electrical Characteristic:Insulation Resistance:500 MΩ Min.Contact Resistance:50 mΩ Max.Withstand Voltage:1000 VACCurrent Rating:1.5 AmperesMaterial:Housing:Thermoplastic UL94V-0Contact:Selective Gold PlatingTerminal:0.35 mm Thick Gold Plated Contacts with Tin Plated Solder Area
