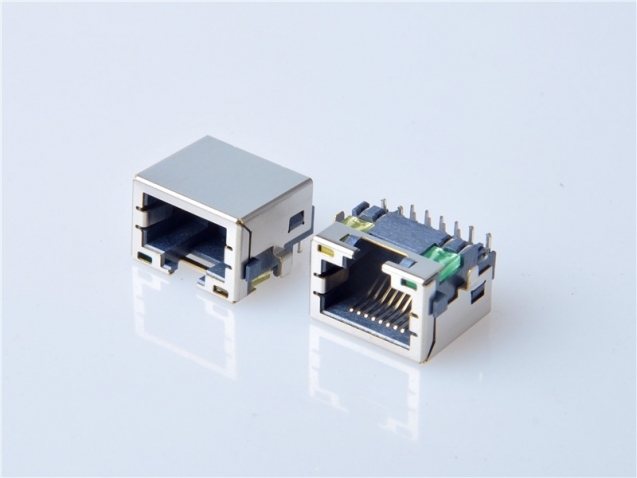

沉板RJ45连接器,带灯超薄,H11.5

產品型號: HR60131SL-88D
產品系列: RJ11/RJ45沉板式SMT系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • Electrical Characteristic:
    Insulation Resistance:
    500 MΩ Min.
    Contact Resistance:
    50 mΩ Max.
    Withstand Voltage:
    1000 VAC
    Current Rating:
    1.0 Amperes
    Material:
    Housing:
    Thermoplastic UL94V-0
    Contact:
    Selective Gold Plating
    Terminal:
    0.30 mm Thick Gold Plated Contacts with Tin Plated Solder Area
    Top Shield:
    Nickel Plated Brass
    Bottom Shield:
    SUS
