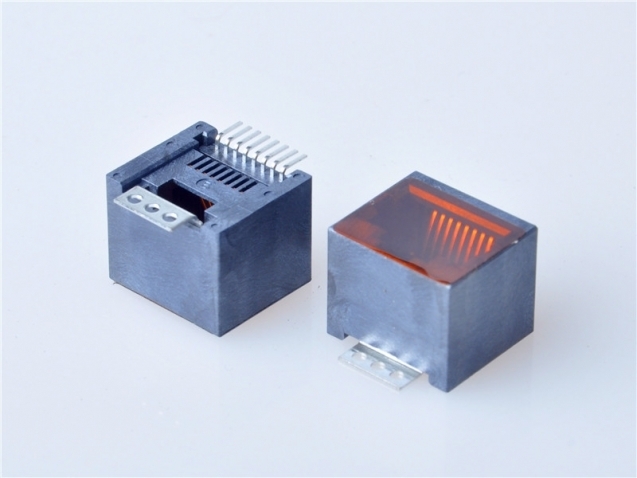

RJ45-8p8c 立贴,180度

產品型號: HLJ-6011-88A-TMR
產品系列: RJ11/RJ45沉板式SMT系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • Electrical Characteristic:
    Insulation Resistance:  500 MΩ Min.
    Contact Resistance:  50 mΩ Max.
    Withstand Voltage:   1000 VAC
    Current Rating:   1.5 Amperes
    Material:
    Housing:     Thermoplastic UL94V-0
    Contact:  Selective Gold Plating
    Terminal:0.35 mm Thick Gold Plated Contacts with Tin Plated Solder Area
