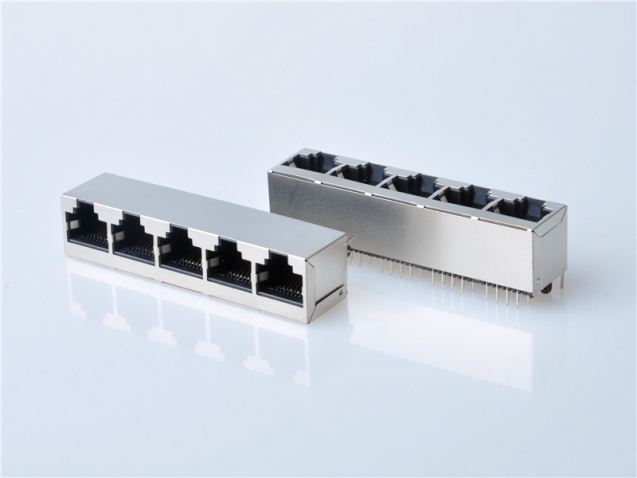

RJ45 8P8C 屏蔽 180度 1X5插座

產品型號: HR522S-1588XXXX
產品系列: RJ11/RJ45单层多胞系列
PDF文檔下載

在線咨詢

  • 詳細介紹
  • 圖紙說明
  • Electrical Characteristic:
    Insulation Resistance:
    500 MΩ Min.
    Contact Resistance:
    50 mΩ Max.
    Withstand Voltage:
    1000 VAC
    Current Rating:
    1.5 Amperes
    Material:
    Housing:
    Thermoplastic UL94V-0
    Contact:
    Selective Gold Plating
    Terminal:
    0.35 mm Thick Gold Plated Contacts with Tin Plated Solder Area
    Shield:
    Nickel Plated Brass
