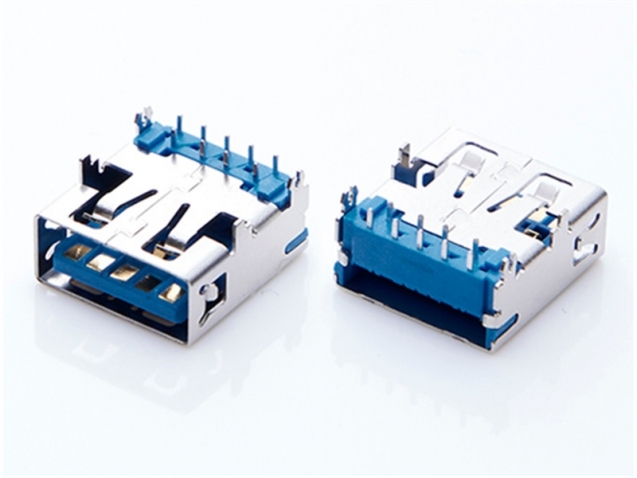

USB接口，USB 3.0 AF DIP 无卷边 短体L=13.7 H=6.26 CL=3.4
產品型號： H181-12X71-23A
產品系列： USB2.0/3.0 連接器系列
PDF文檔下載
- 詳細介紹
- 圖紙說明
-
1.ELECTRICAL CHARACTERISTICS:
1.1 CONTACT RESISTANCE:30mΩMAX
1.2 CONTACT CURRENT RATING:1.5A
1.3 DIELECTRIC WITHSTANDING VOLTAGE:100 V R.M.S.
1.4 INSULATION RESISTANCE 100 MΩMIN
1.5 OPERATING TEMPEROTURE:-40°C ～85°C
2.MECHANICAL CHARACTERISTICS:
2.1 MATING FORCE:3.57kgf MAX
2.2 UNMATING FORCE:1.02kgf MIN
2.3 DURABILITY MANDATORY:5,000 CYCLES
